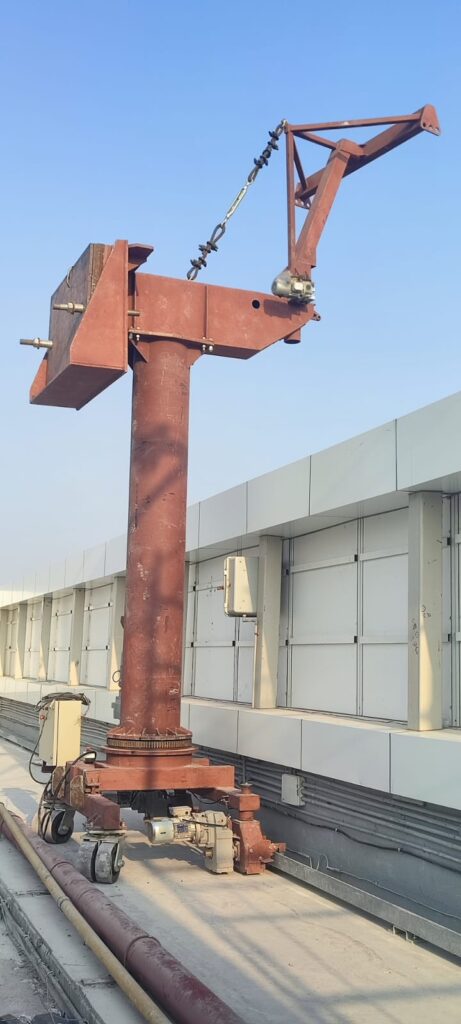

BUILDING MAINTENANCE UNITS (BMU)
Technical Specifications:-
Material :- SS & MS HDG and few alloy materials Finish:- Hot dipped Galvanizing and then painting finishing Weight:- depended on building structure Load carrying capacity :- 500 kgs Outreach:- can be fixed along with building structure Safety Features:- this track trolleys systems are in accordance with European Standards EN 1808 incorporating counter weighted designs to ensure complete stability during operations. And it complements the product range of Facade access systems being a high quality unit for building with complex building geometry and large terraces.
Additional Features:- this system is a unique part of Facade Access System , providing complete horizontal and vertical movements of the powered cradle platforms. And These trolleys travel on twin MS HDG tracks, mounted on pedestals on the roof and are provided with heavy duty load bearing wheel units, designed to provide a long jib outreach to high rise and complex Facades. they enable safe access and can serve to multiple access situationsSPECIAL ALUMINUM ALLOY PARAPET/ROOF DAVIT SYSTEM
Technical Specifications:-
Material:- Aluminum Alloy AA6351 Finish:- Aluminum mill finished
Base:-Sealed fabricated mild steel hot dip galvanized Type:- Top slewing 360 degree rotating type
Weight:- 110-140 kgs Load carrying capacity:- 500kgs Outreach:- Max outreach is 2.5 meters
Safety Features:- Locking pin with spilt pin to secure base with socket plate. Additional features:- terrace parking for cradle and cradle suspension point can be adjusted as per site facade and transport wheels provided for ease of movement and 360 degree slewing of davit and special cradle lengths ALUMINUM ALLOY MOANORAIL HIDDEN/RAISING SYSTEM
Technical Specifications:-
Material :- Special Aluminum Alloy AA6351
Load carrying capacity :- 180 kgs Safe working load Outreach:- max can be increased up to 2.8 meters
Safety Features:- End stops with limit switches and manual and motorized rollers can be used with special cradles.

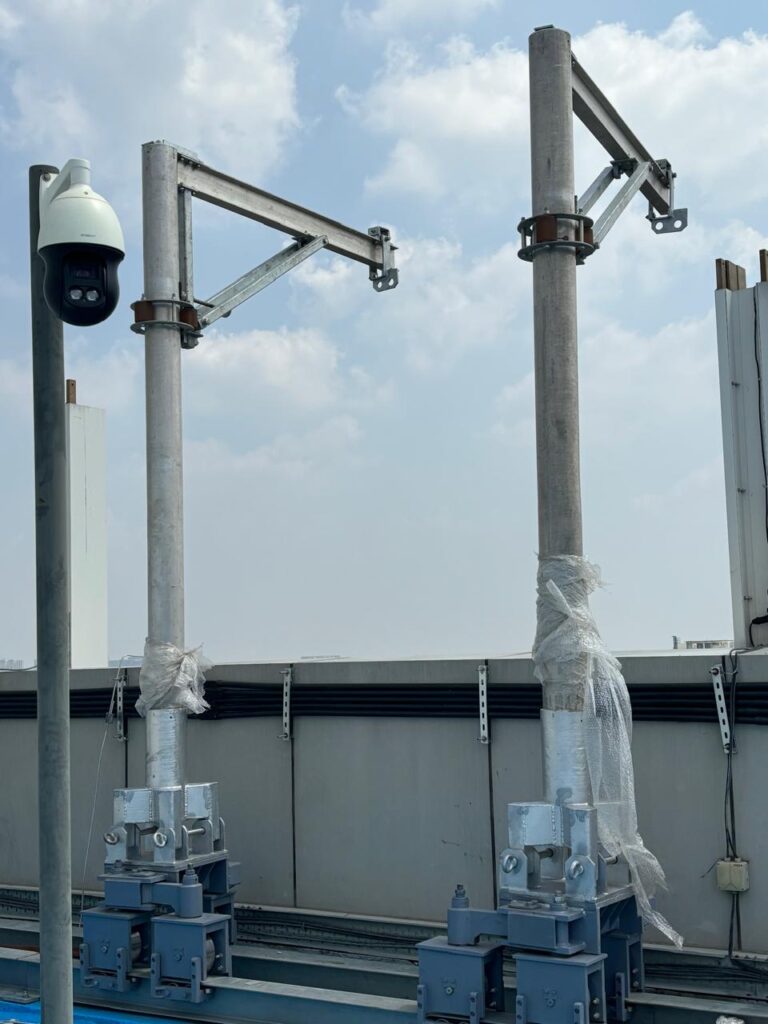

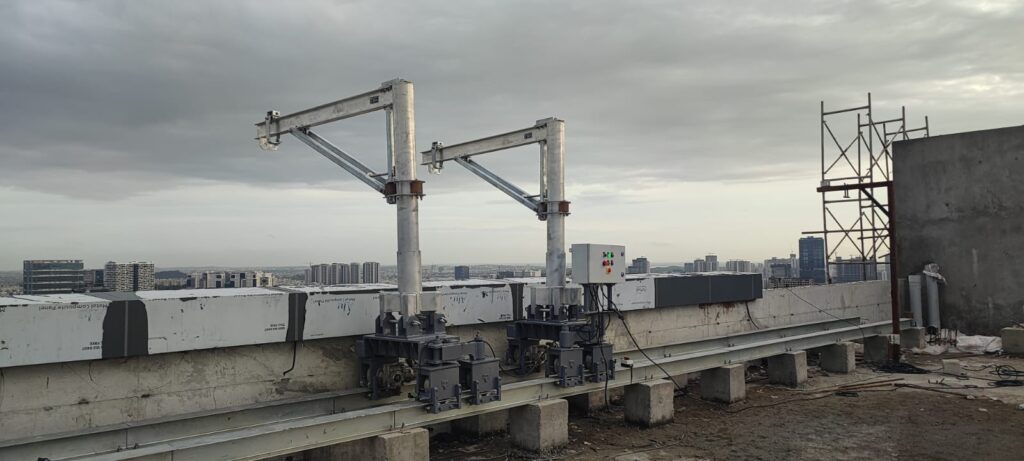

ROOF/PARAPET MOUNTED TRAVERSING DAVIT SYSTEM
Technical Specifications:-
Material:- Special Aluminum AA6351 T6 Temper
Load Carrying Capacity:- 500 Kgs
Outreach:- Max 2500 mm and standard height is min 1750 mm and max 3500mm
Safety Features:- Pivoting safety stops to avoid accidental sliding back and provided with safety harness anchoring points
Additional Features:- these trolleys are mounted on H beam rail track and the davits are made of heat tempered aluminum alloy frame with welded connections and each davit is fixed on it.

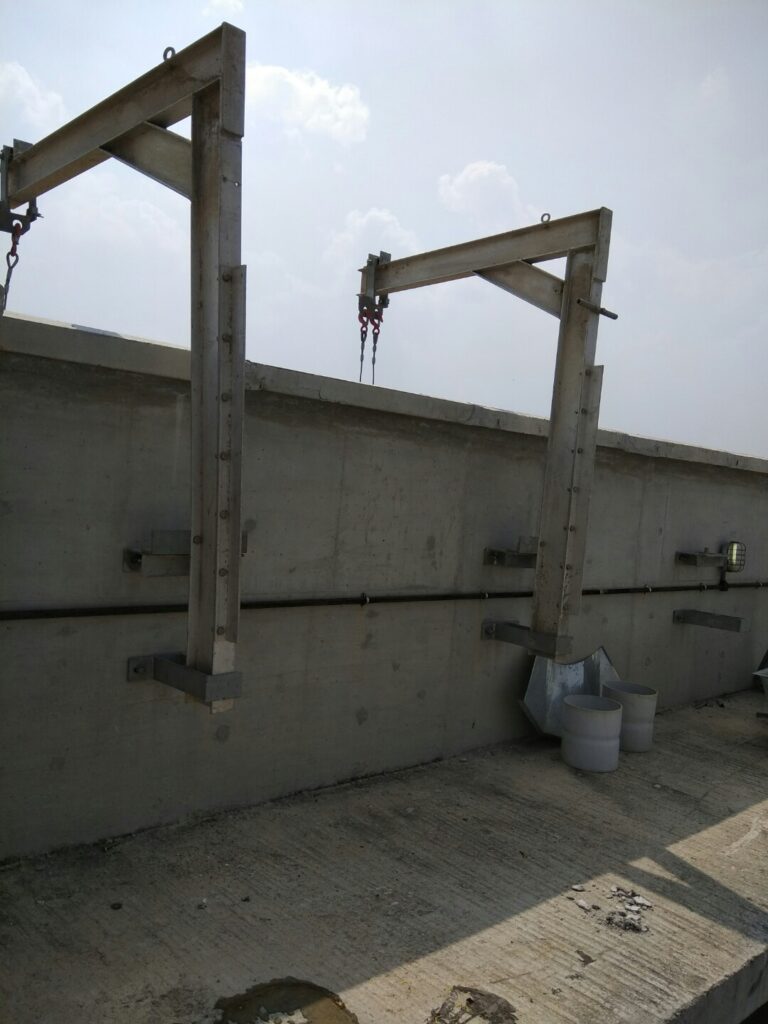

PORTABLE ROOF/PARAPET MOUNTED JIB SYSTEM
Technical Specifications:-
Material:- Special Aluminum Alloy AA6351 Finish:- Aluminum mill finished
Weight:- 25-30kgs
Load carrying capacity :- 500 kgs Outreach:- 1500 mm
Safety Features:- Pivoting safety stops to avoid accidental sliding back and provided with safety harness anchoring points.
Additional Features:- Easy to erect and dismantle and light in weight and easy erection and operation.
ROOF/PARAPET MOUNTED SS316 SAFETY EYE BOLTS SYSTEM
Technical Specifications:-
Material :- SS304/316
Standard parapet mounted eye bolt SIZE & LENGTH :- M16*135 mm Standard roof /slab mounted eye bolt SIZE &LENGTH:- M16*190mm Non-standard eye bolt SIZE & LENGTH :- M20/24* 160mm to 490mm.
Safety Futures:- Smooth contour to avoid wear and tear of suspension shackles. Each safety eye bolt tested for 1000 kgs load after installation.
Heat treatment after manufacturing.

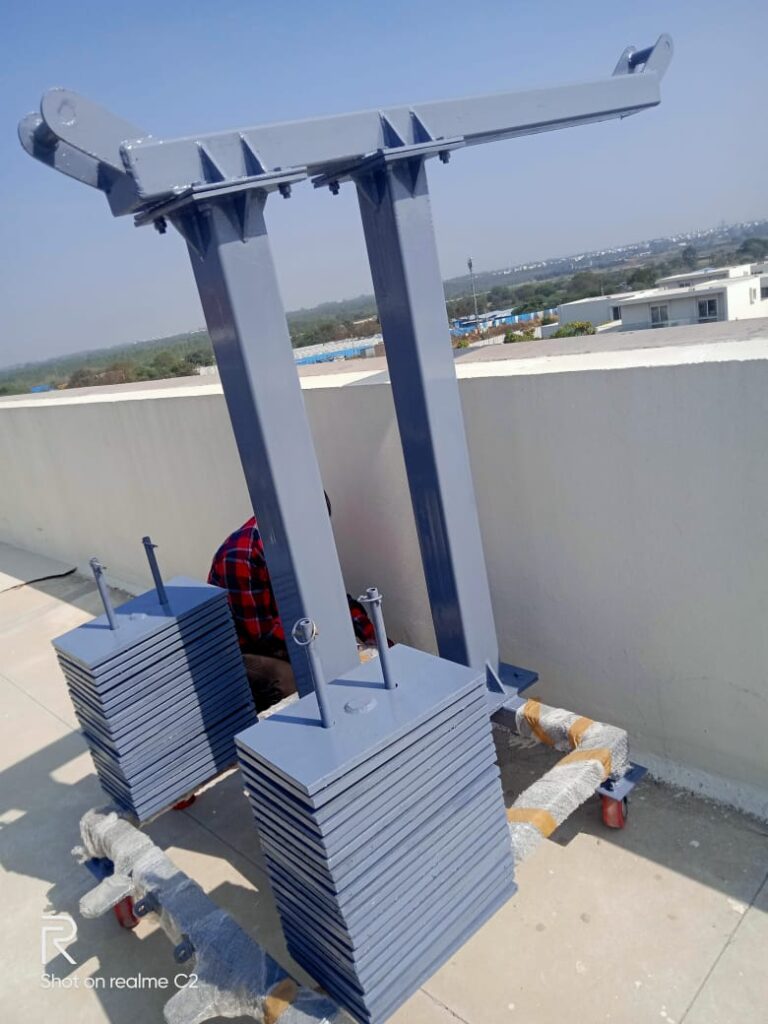

ROOF RIG FOR SPIDER MAN ACCESS
Technical Specifications:-
Material: MS powder coated /GI/ Painted
Safe working load : 180 kgs
Self weight of the system: 700 kgs
Outreach; Max 2.5 meters and standard height from 1.5 meters to 3 meters
Counter weights: 540 kgs of MS
Max building height: 50 meters
Castor wheels: provided to move it to and fro
Safety Features: to halt constantly in one place and to arrest the machine brakes provided to castors and to avoid rope slips side c bars provided and and to tie the rope to separate hooks provided and hence can operate it very easily and move it one place to other places easily due to castor wheels and finally it is very easy to dismantle and can keep it in store and can reassemble whenever you want to use it.
ARTICULATED POWER CRADLE MACHINE
Technical Specifications
Platform construction: complete paneling in ss 304 perforated sheet and constructed out of MS Box section and the flooring is aluminum chequered plate with toe board and fitted with PVC covered foam buffering & rubber rollers and for shifting it castor wheels provided.
safe working load on platform : 180 kgs ( 2 persons + materials)
power requirement:- plug and socket outlet 5 pin ( IP 64 protected) 415v, 3phase, 50HZ, 20 Amp.
power supply: as per project requirement power cable required : PVC copper flexible cable 6 core x 2.5 SQ mm and Length as per site condition. cradle size: 2345mm (L) X 1466 mm (W) X 3635 mm (H) including castors Hoisting Height : as per site requirement Hoisting /lowering speed : 8.5 M/ Min wire rope specification: size: Dia.8mm, 6 x 19 Galvanized wire rope safety factor: 10:1 over speed governor and safety gears : Inbuilt Hoist Units: European make Hoist or Equivalent controls: central control in the cradle platform fixed for traction hoists with IP55 Protection, Main switch, phase protection and push buttons and safety switches and limit switched also fixed. Rope Reeving: Rope winding/ unwinding onto power reelers fitted below the winches for both, main suspension and secondary safety wire rope. torque limiters provided for slack free reeving.

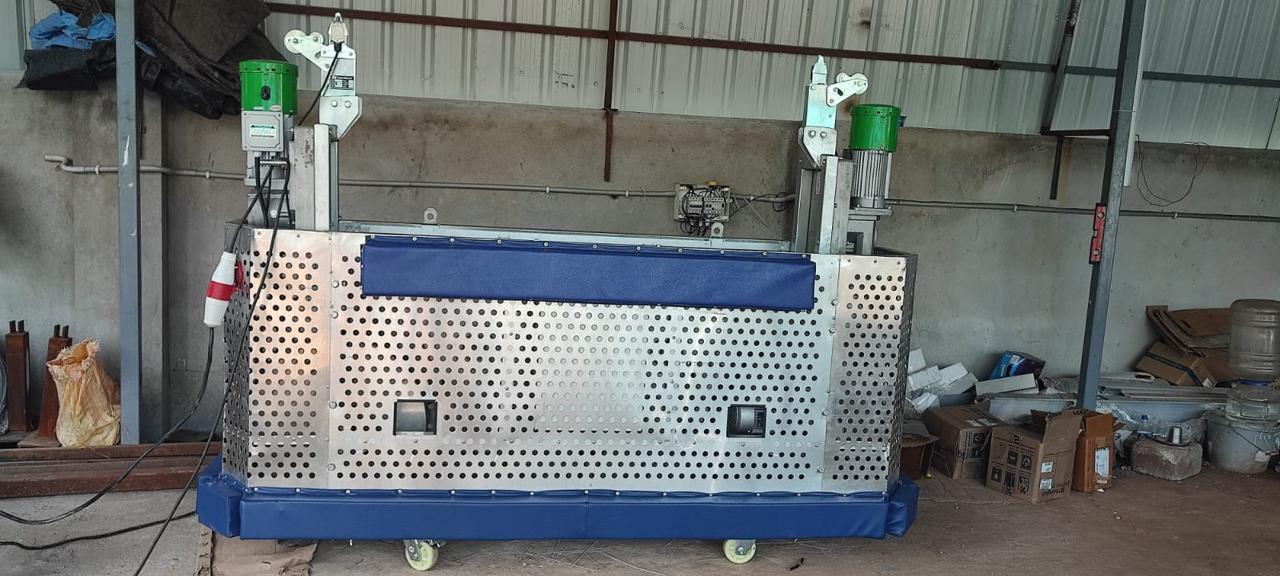

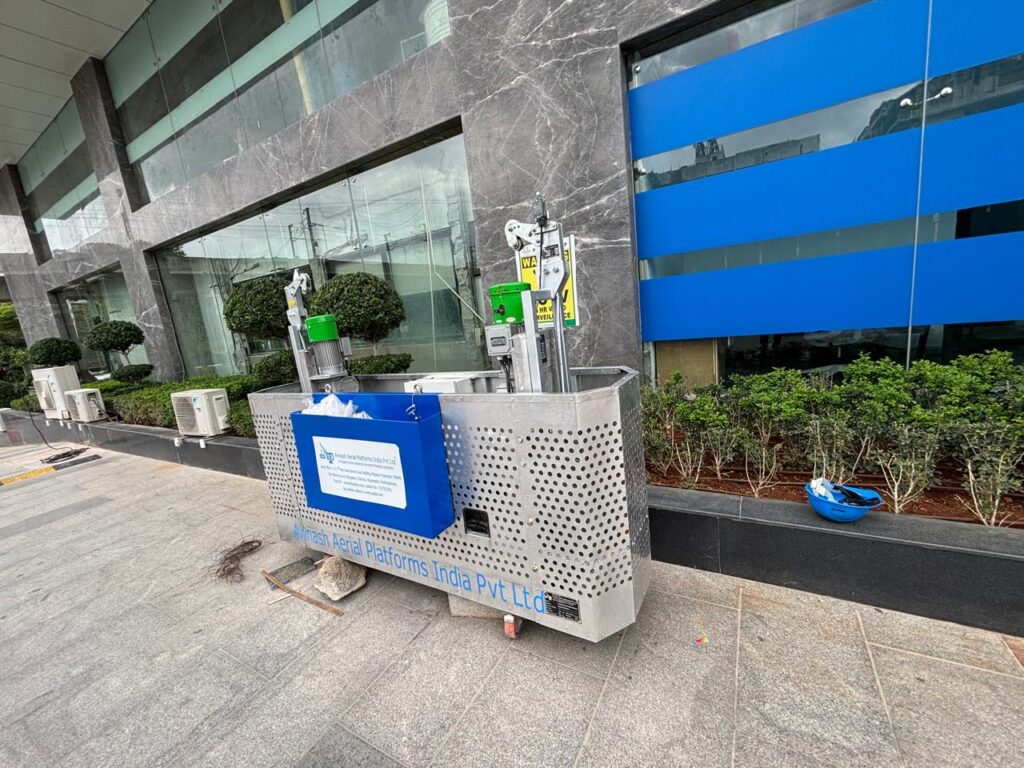

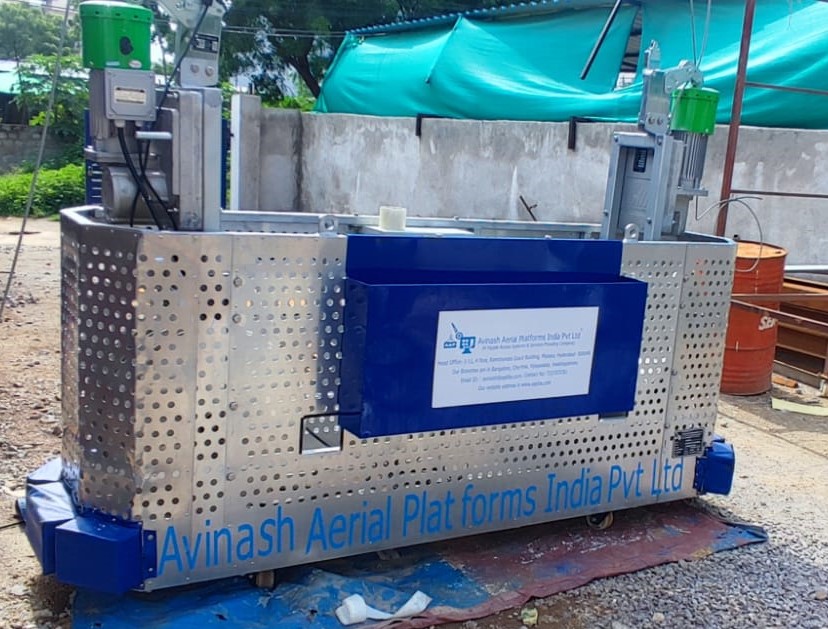

TWO MAN STANDARD POWER CRADLE MACHINE
Technical Specifications
Platform construction: complete paneling in SS 304 perforated sheet and constructed out of MS Box section and the flooring is aluminum chequered plate with toe board and fitted with PVC covered foam buffering & rubber rollers and for shifting it castor wheels provided.
safe working load on platform : 180 kgs ( 2 persons + materials)
power requirement:- plug and socket outlet 5 pin ( IP 64 protected) 415v, 3phase,50HZ, 20 Amp.
power cable required : PVC copper flexible cable 6 core x 2.5 SQ mm and Length as per site condition.
cradle size: 2345 mm (L) X 700 mm (W) X 1100 mm (H) including castors Hoisting Height: as per site requirement Hoisting / lowering speed : 8.5 M/ Min Wire rope specification: size: Dia.8mm, 6 x 19 Galvanized wire rope safety factor: 10:1 Over speed governor and safety gears : Inbuilt Hoist Units: European make Hoist or Equivalent Controls: central control in the cradle platform fixed for traction hoists with IP55 Protection, Main switch, phase protection and push buttons and safety switches and limit switched also fixed. Rope Reeving: Rope winding/ unwinding onto power reelers fitted below the winches for both, main suspension and secondary safety wire rope. torque limiters provided for slack free reeving.
ROPE SUSPENDED PLATFORM MACHINE
Technical Specifications
Model:- AAP -ZLP800
Material:- MS with painting /Galvanized Height;:- 100 meters
Rated Load:-800 kg Platform Length:- 7.5 meters x 0.65 meters safety lock type:-LST20 Hoist Motor Load 8.0 kn & lifting speed 8.3m/min & power 1.8kw total weight:-1900 kg counter weights;- 25kg x 40pcs ( cement ) Diameter of steel wire rope:- 8.6 mm power ratings:- 3ph,415v, 50HZ,32A, 5 PIN plug socket ,IP64.

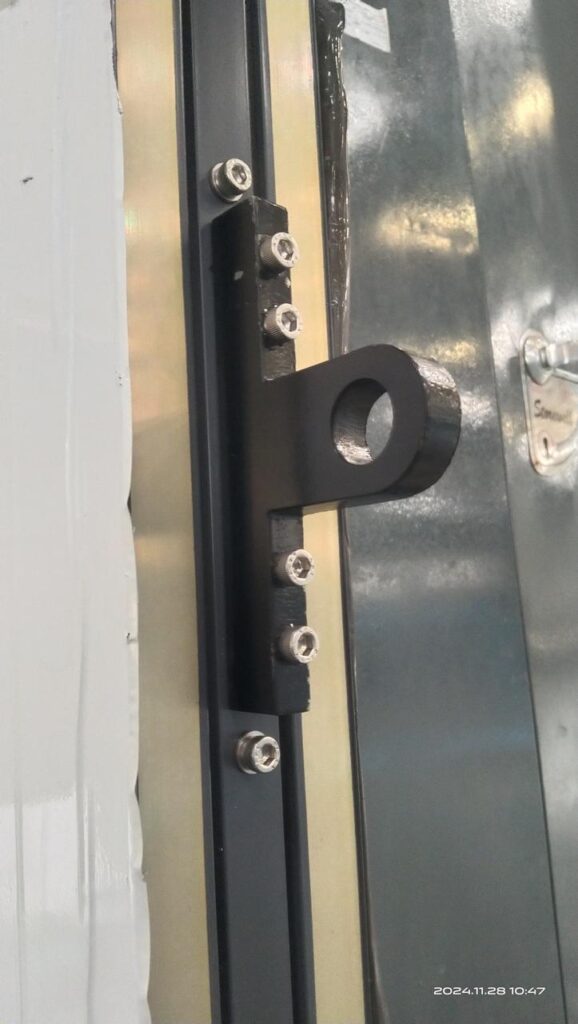

RESTRAINT SOCKETS/GUN SYSTEM
Technical Specifications
Materials: SS304/316
First set starting level of it : 40 m from working level Next level of the sockets: 20 m above to starting level safety norms : En 1808 standards
